Core Stator & Rotor (PO 7 Hari)

Core Stator & Rotor (PO 7 Hari)
Roll over image to zoom in
Click to open expanded view

Rp180.000

In stock

Wishlist
Compare
Category:

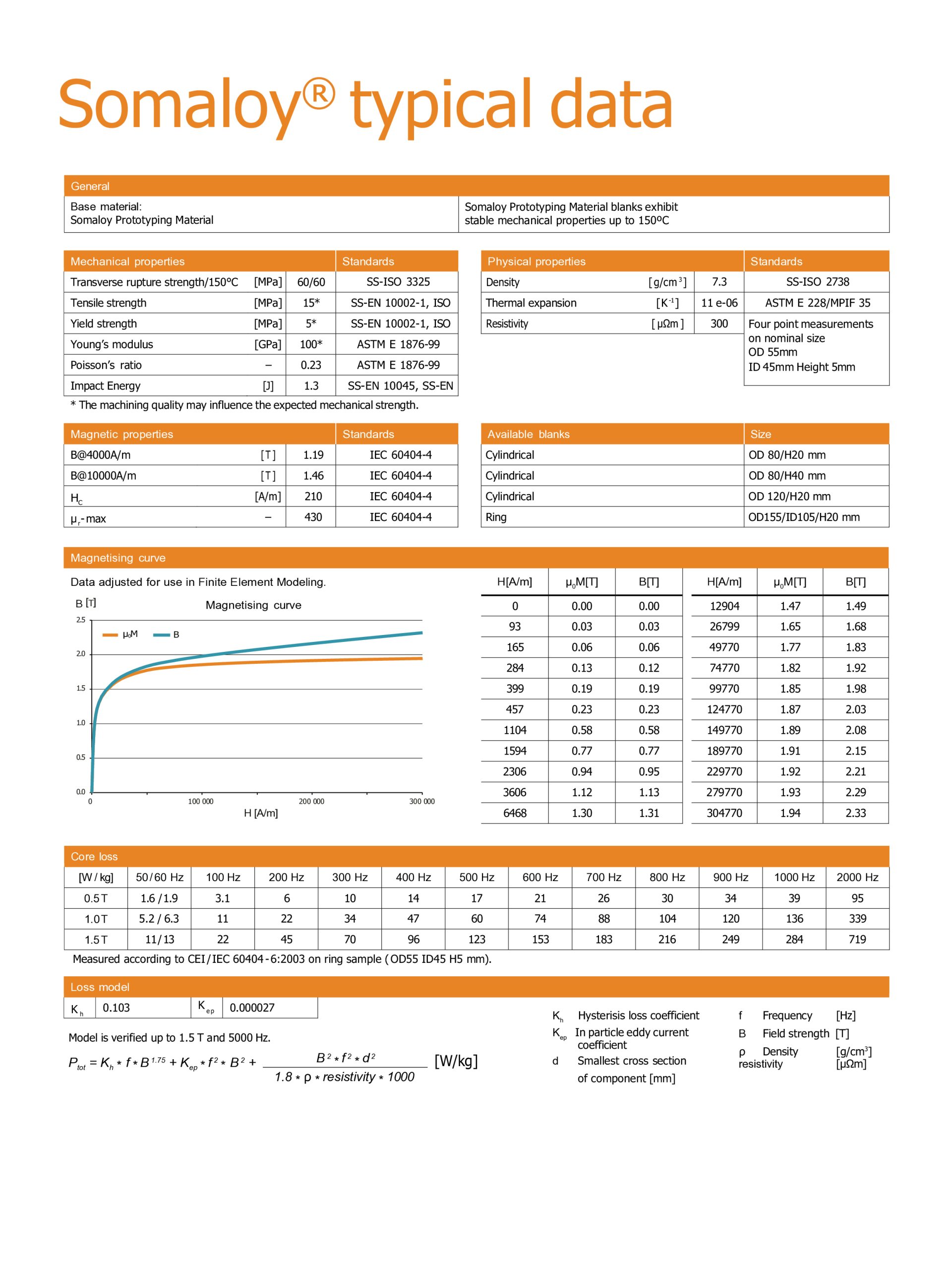

Somaloy® typical data

General
Base material:

Somaloy Prototyping Material

 Somaloy Prototyping Material blanks exhibit stable mechanical properties up to 150ºC
Mechanical properties Standards
Transverse rupture strength/150°C [MPa] 60/60 SS-ISO 3325
Tensile strength [MPa] 15* SS-EN 10002-1, ISO
Yield strength [MPa] 5* SS-EN 10002-1, ISO
Young’s modulus [GPa] 100* ASTM E 1876-99
Poisson’s ratio – 0.23 ASTM E 1876-99
Impact Energy [J] 1.3 SS-EN 10045, SS-EN
Physical properties Standards
Density                                     [ g/cm 3 ] 7.3 SS-ISO 2738
Thermal expansion                      [ K -1 ] 11 e-06 ASTM E 228/MPIF 35
Resistivity                                   [ μΩm ] 300 Four point measurements on nominal size

OD 55mm

ID 45mm Height 5mm
Magnetic properties Standards
B@4000A/m [ T ] 1.19 IEC 60404-4
B@10000A/m [ T ] 1.46 IEC 60404-4
HC [A/m] 210 IEC 60404-4
µ r – max – 430 IEC 60404-4

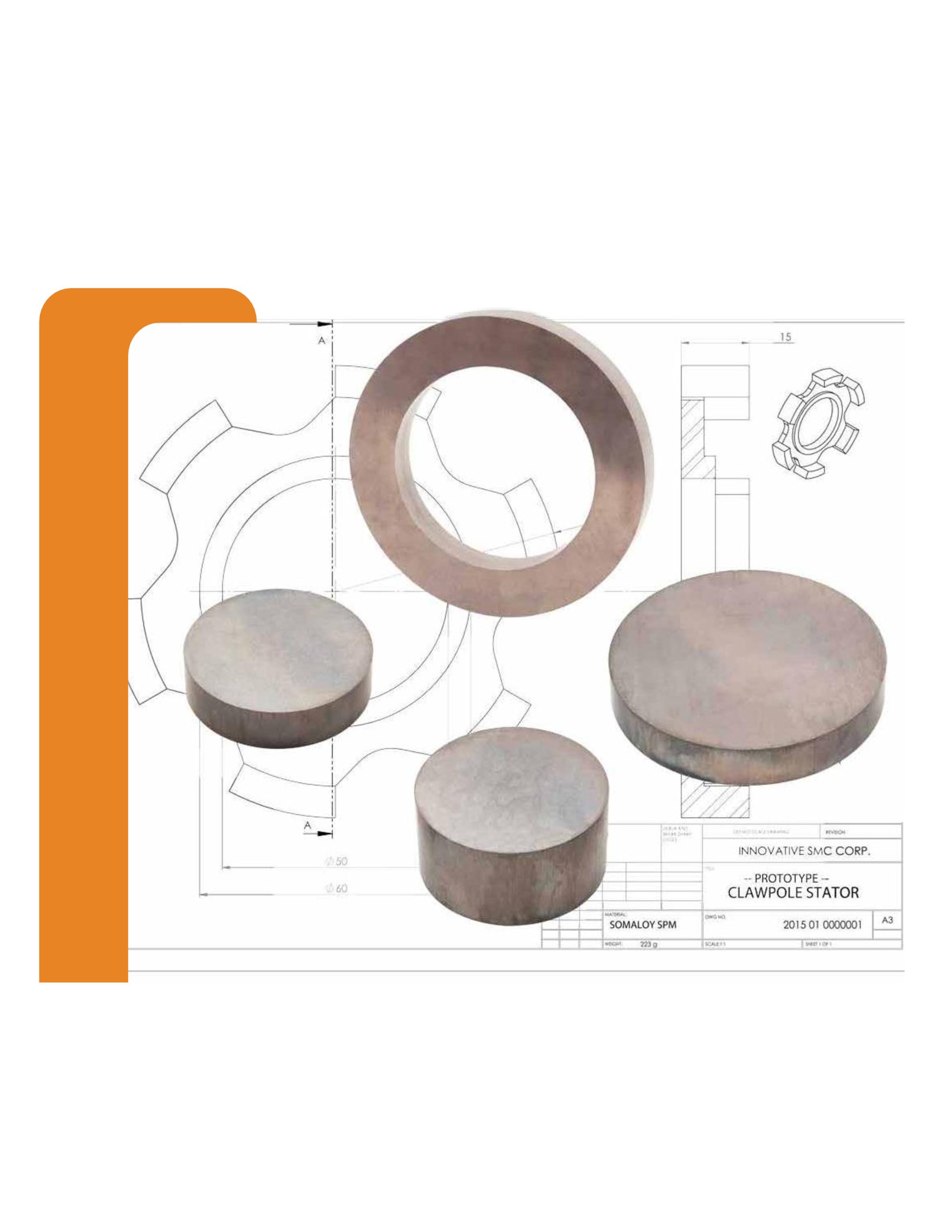

Available blanks Size
Cylindrical OD 80/H20 mm
Cylindrical OD 80/H40 mm
Cylindrical OD 120/H20 mm
Ring OD155/ID105/H20 mm
Magnetising curve
Data adjusted for use in Finite Element Modeling.

B [T]                              Magnetising curve

2.5

µ0M                B

2.0





1.5





1.0





0.5





0.0

0                                         100 000                                    200 000                                    300 000

H [A/m]

 H[A/m] µ0M[T] B[T] H[A/m] µ0M[T] B[T]
0 0.00 0.00 12904 1.47 1.49
93 0.03 0.03 26799 1.65 1.68
165 0.06 0.06 49770 1.77 1.83
284 0.13 0.12 74770 1.82 1.92
399 0.19 0.19 99770 1.85 1.98
457 0.23 0.23 124770 1.87 2.03
1104 0.58 0.58 149770 1.89 2.08
1594 0.77 0.77 189770 1.91 2.15
2306 0.94 0.95 229770 1.92 2.21
3606 1.12 1.13 279770 1.93 2.29
6468 1.30 1.31 304770 1.94 2.33
Core loss
[W / kg] 50 / 60 Hz 100 Hz 200 Hz 300 Hz 400 Hz 500 Hz 600 Hz 700 Hz 800 Hz 900 Hz 1000 Hz 2000 Hz
0.5 T 1.6 / 1.9 3.1 6 10 14 17 21 26 30 34 39 95
1.0 T 5.2 / 6.3 11 22 34 47 60 74 88 104 120 136 339
1.5 T 11 / 13 22 45 70 96 123 153 183 216 249 284 719
Loss model
K h 0.103 K e p 0.000027
